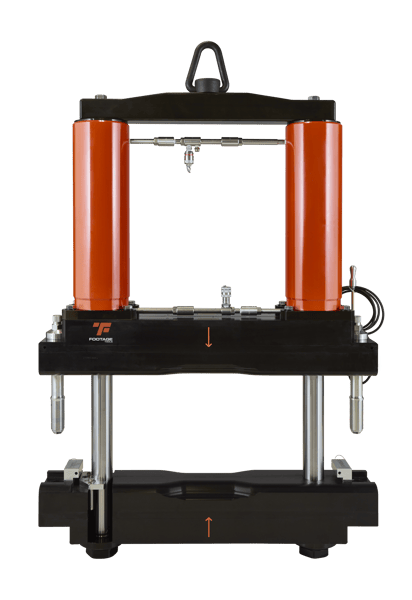

The C1600 features custom stop blocks, aircraft-grade aluminum squeeze bars, chrome-plated steel side shafts, and a 10,000 PSI hydraulic system with quick-connect fittings.

This CNC machined tool contains no welded parts and exerts 261 tons of squeezing force.

The unique lock-in / swing-out bottom bar design allows for quick and easy access to the pipe, even in confined spaces, and the lock-down bolts ensure that a squeeze is maintained even if the hydraulics are disconnected. The C1600 also incorporates an efficient dog bone design on the jaws to obtain maximum flow control, while requiring minimal force to squeeze the pipe.

A C1600-AK1 pump is required. Custom stop blocks are available upon request.

Weight: 1300 lbs.
