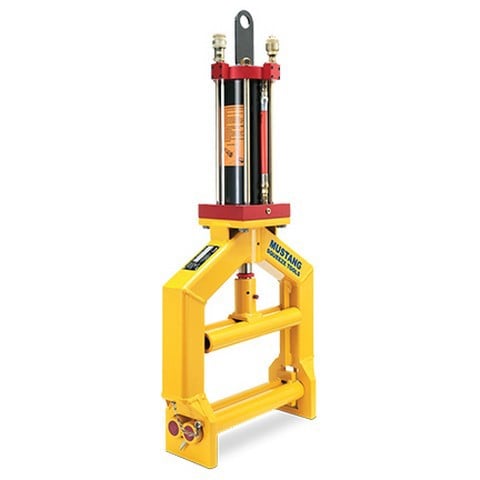

The Model DBM-60 Mid-Duty Squeeze Tool is similar to the DBG-60 manual tool with the exception that it is hydraulically operated.

A reduced-stroke version of Mustang’s proven hydraulic cylinder provides 41,000lbs of force directly over the pipe. The cylinder incorporates a built-in locking valve to ensure that pressure is maintained on the pipe in the event of a hydraulic failure.

Saddle clamps are provided to mechanically lock the upper and lower jaws and to assist in accomplishing a good squeeze off.

Includes Model 20A Hydraulic Pump & Hose and a pair of SC-60 Saddle Clamps. An optional squeeze release control valve is also available that permits slow, controlled release of the upper jaw.
