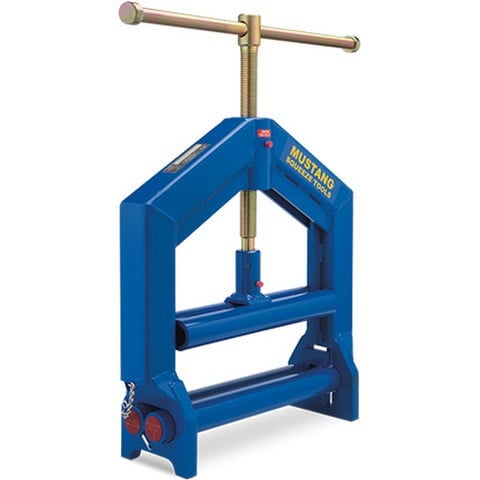

Mustang Manufacturing 8" Mechanical Squeeze Tool, Mustang
Mustang Manufacturing 8" Mechanical Squeeze Tool, Mustang
SKU: DBGA-80
Brand: Mustang Manufacturing
Manufacturers:
Description
The DBGA-80 Double-Bar Squeeze Tool is the largest manual tool in Mustang’s lineup and is an economical means of squeezing-off large diameter PE pipe. The dual-bar lower jaw has two sets of gap stops for the two pipe sizes of your choice.
The same rugged design as used in all Mustang tools is utilized to provide maximum strength, lighter weight, and superior performance.
Nearly identical to its “little brother,” the DBGA-60, the DBG-80 features the same proven tubular frame, powerful Acme Power Screw and Upper Jaw Thrust Bearing with grease fittings for lubricating the screw and thrust bearing.
Product Features
Includes a pair of SC-80 saddle clamps.
When ordering, please specify two (2) pipe sizes and SDRs. See chart below.
Note: SEG-30 (grounding kit) will be needed for use with tool.
Weight: 92 lbs. Dimensions: 30” height.
| Pipe Size | Nominal Wall Thickness | SDR | Gap Stop | % Max Squeeze |
| 3" IPS | 0.259 0.307-0.318 0.389 | 13.5 11-11.5 9 | 0.435 0.500 0.625 | 26 29 26 |
| 4" IPS | 0.333 0.395-0.409 0.500-0.548 | 13.5 11-11.5 9 | 0.560 0.675 0.800 | 25 26 24 |
| 6" IPS | 0.427 0.491 0.568-0.602 0.736 | 15.5 13.5 11-11.5 9 | 0.725 0.813 1.000 1.125 | 22 26 26 24 |
| 8" IPS | 0.557 0.639 0.750-0.785 | 15.5 13.5 11-11.5 | 0.935 1.125 1.250 | 26 21 28 |
For replacement parts, contact [email protected].
