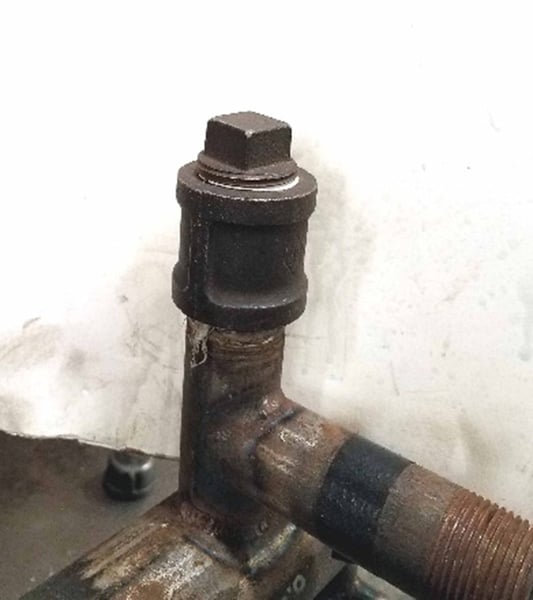

Mazco Adapter Kit - Plug Tee
Mazco Adapter Kit - Plug Tee
Brand: Mazco
Manufacturers:
Description
Plug Tee Parts:
| Qty. Req. | Part# | Description |
| 1 | 54-MSTS1050 | 3/4" to 2" Street Tee and Saddle Clamp Housing (base housing) |
| 1 | 54-MSTS1035B | Chain Retainer Turnbuckle Set (x2 each) |
| 1 | 54-MSTS1035C | Housing Turnbuckle Hook Set (x2 for single chain fastening) |
| 1 | 54-MSTS1035CD | Housing Turnbuckle double hook set (x2 for double chain fastening) |
| 2 | 54-MSTSA2040 | 1" Roller Chain Set for 4"-8" main (36"L, 2 need for chain fastening) |
| 2 | 54-PS1250 | Poly Spacer 5 1/2" x 1 1/4" Pipe |
| 2 | 54-PS2000 | Poly Spacer 5 1/2" x 2" Pipe |
| 2 | 54-PS3000 | Poly Spacer 5 1/2" x 3" Pipe |
| 1 | 54-MSTS 1027 | 3/4" Plug Removal Adapter |
| 1 | 54-MSTS1003DA | 3/4" Street Tee Reducer Ring (disc with quad o-ring) |
| 1 | 54-MSTS1027A | 1" Plug Removal Adapter |
| 1 | 54-MSTS1003E | 1" Street Tee Reducer Ring (disc with quad o-ring) |
| 1 | 54-MSTS1027B | 1-1/4" Plug Removal Adapter |
| 1 | 54-MSTS1003F | 1-1/4" Street Tee Reducer Ring (disc with quad o-ring) |
| 1 | 54-CHC750 | Coupling Half Collar 3/4" |
| 1 | 54-CHC1000 | Coupling Half Collar 1" |
| 1 | 54-CHC1250 | Coupling Half Collar 1 1/4" |
| 1 | 54-FCS750 | Full Coupling Seal 3/4" (rubber gasket) |
| 1 | 54-FCS1000 | Full Coupling Seal 1" (rubber gasket) |
| 1 | 54-HCS1000 | Half Coupling Seal 1" (rubber gasket) |
| 1 | 54-FCS1250 | Full Coupling Seal 1 1/4" (rubber gasket) |
| 1 | 54-SPA750 | Security Plug Assembly 3/4" |
| 1 | 54-SPA1000 | Security Plug Assembly 1" |
| 1 | 54-SPA1250 | Security Plug Assembly 1 1/4" |
| 1 | 54-6493A75 | 5/16’’ High-Visibility Gold Hex L-Key |
| 1 | 54-PLUGCASEC | Custom Plug Kit Case |
| 1 | 54-SPA1500 | Security Plug Assembly 1 1/2" |
| 1 | 54-SPA2000 | Security Plug Assembly 2" |
| 1 | 54-MSTS1027C | 1-1/2" Plug Removal Adapter |
| 1 | 54-MSTS1003G | 1-1/2" Street Tee Reducer Ring (disc with quad o-ring) |
| 1 | 54-MSTS1027D | 2" Plug Removal Adapter |
| 1 | 54-MSTS1003H | 2" Street Tee Reducer Ring (disc with quad o-ring) |
Plug Tee Replacement Reducer Disc and Quad O-Rings:
| Description | Part# |
| 3/4" Street Tee Reducer Ring (c/w small and large quad o-ring) | 54-MSTS 1003DA |
| 3/4 Street Tee Reducer Ring Small Quad O-Ring | 54-90025K402 |
| ¾” - 1 1/4" Street Tee Reducer Ring Large Quad O-Ring | 54-90025K394 |
| 1" Street Tee Reducer Ring (c/w small and large quad o-ring) | 54-MSTS 1003E |
| 1" Street Tee Reducer Ring Small Quad O-Ring | 54-90025K404 |
| ¾” - 1 1/4" Street Tee Reducer Ring Large Quad O-Ring | 54-90025K394 |
| 1 1/4" Street Tee Reducer Ring (c/w small and large quad o-ring) | 54-MSTS 1003F |
| 1 1/4" Street Tee Reducer Ring Small Quad O-Ring | 54-90025K406 |
| ¾” - 1 1/4" Street Tee Reducer Ring Large Quad O-Ring | 54-90025K394 |
Plug Drill Add-On Kit Parts:
| Qty. Req. | Part# | Description |
| 1 | 54-MSLS 5130A | Drill Shaft Housing with bearing for 3000BV |
| 1 | 54-MSLS 5120 | Drill Bit Shaft with Depth Collar (16" Long x 7/16 hex) |
| 1 | 54-91929 | 1/2" Drive Ratchet |
| 1 | 54-916DS | 9/16" DEEP SOCKET (6PT) |
| 1 | 54-716 | 7/16 Standard Socket |
| 1 | 49-A3025 | 1/2" AIR DRILL |
| 1 | 45-A5314 | Cutting / Drilling Compound |
| 1 | 54-614A23 | Air Chuck |
| 1 | 54-7092T18 | Hand Brush |
| 1 | 54-MSTS1003DADG | 3/4" reducer Ring Drill Guide (Plug Drill) |
| 1 | 54-MSTS1003EADG | 1" reducer Ring Drill Guide (Plug Drill) |
| 1 | 54-MSTS1003FADG | 1 1/4" reducer Ring Drill Guide (Plug Drill) |
| 1 | 54-HAS500 | HOLE SAW ADAPTER .500 |
| 1 | 54-HAS625 | HOLE SAW ADAPTER .625 |
| 1 | 54-4192A14 | 3/4'' PDRILL HOLE SAW |
| 1 | 54-4192A16 | 1'' PDRILL HOLE SAW |
| 1 | 54-4192A21 | 1-1/4'' PDRILL HOLE SAW |
| 1 | 54-4192A24 | 1-1/2'' PDRILL HOLE SAW |
| 1 | 54-4192A29 | 2'' PDRILL HOLE SAW |
| 1 | 54-DACASE | DRILL STS Elbow and Plug Case |
