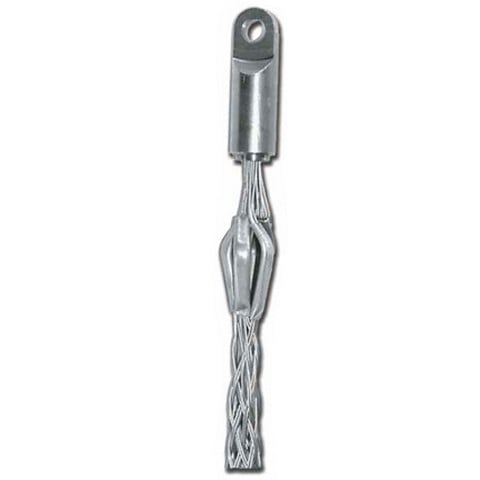

DCD Design & Manufacturing Wire Mesh Pulling Grips - Heavy Duty, 690 Series
DCD Design & Manufacturing Wire Mesh Pulling Grips - Heavy Duty, 690 Series
Brand: DCD Design & Manufacturing
Manufacturers:
Description
These grips offer a stainless steel rotary head with double-weave galvanized wire construction for durability. The shoulders help to protect the leading edge of the cable or ducting and this type should be used for medium to heavy-duty applications.
Product Features
| Duct Size | Size Range | Approximate Mesh Length | Approximate Breaking Strength | Weight |
| 3/8" | 0.50" to 0.74" | 16" | 5,800 lb | 0.49 lb |
| 1/2" & 3/4" | 0.75" to 1.12" | 24" | 6,700 lb | 0.72 lb |
| 1" | 1.13" to 1.49" | 33" | 13,000 lb | 2.31 lb |
| 1-1/4" & 1-1/2" | 1.50" to 1.99" | 36" | 16,500 lb | 3.00 lb |
| 2" | 2.00" to 2.49" | 36" | 21,000 lb | 4.27 lb |
| 2-1/2" | 2.50" to 2.99" | 38" | 33,000 lb | 7.03 lb |
| 3" | 3.00" to 3.74" | 39" | 41,000 lb | 7.29 lb |
| 3-1/2" | 3.75" to 4.24" | 42" | 48,000 lb | 8.55 lb |
| 4" | 4.25" to 4.99" | 58" | 48,000 lb | 10.88 lb |
