McElroy 2CU Fusion Machine Package
McElroy 2CU Fusion Machine Package
SKU: A200101
Brand: McElroy
Manufacturers:
Description

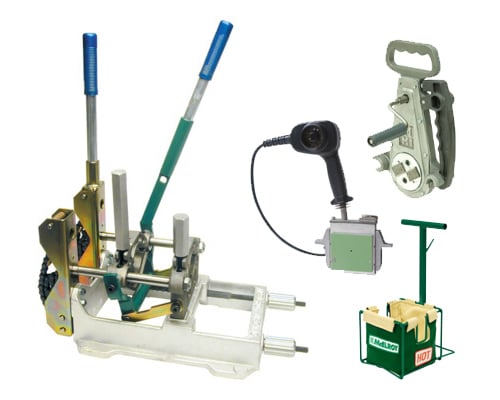

The 2CU machine will butt fuse 1/2” CTS to 2” IPS (16mm to 60mm) pipe, tees, ells, and other fittings. This combination unit (CU) incorporates McElroy’s patented combination sidewall feature. Sidewall inserts with chain vise allow the unit to be attached on the centerline of a pipe main for sidewall fusion of 1/2” to 2” service saddles, round base branch saddles, and small tapping tees. The 2CU is equipped with chain lengths that will clamp up to 8” IPS pipe. Additional chain lengths are available for larger main sizes.
