Model 461-X57 and Model 441-X57 regulators are unique high-pressure, large-capacity, spring-operated regulators. These high-pressure regulators incorporate the same “roll-out” diaphragm principle that is so successful in our widely used 461-57S and 441-57S medium-pressure regulator models.

Both regulators offer pilot-type performance with spring-operated regulator simplicity. The action of the roll-out diaphragm makes the regulators’ exceptional performance possible by reducing “droop” (the fall off in outlet pressure as a spring regulator opens to increase flow) to a minimum.

With fast response and ease of installing, adjusting, and servicing, models 461-X57 and 441-X57 are perfect for most high-pressure, large-capacity applications. This includes: high-pressure regulator sets, gas distribution systems, town border stations, transmission systems, and most industrial applications.

Model 461-X57 and Model 441-X57 regulators can also be used as monitors and quickly assume control if a failure in the operating regulator allows the outlet pressure to exceed its set point. No modifications are required for use as a monitor, even if used as a monitor for other types of regulators.

Model 461-X7S
Body Sizes = 2” Flanged in ANSI 250, 300 & 600 RF
Max Inlet Pressure = 575 psi up to 1000 psi
Outlet Pressure Range = 75 psi - 250 psi

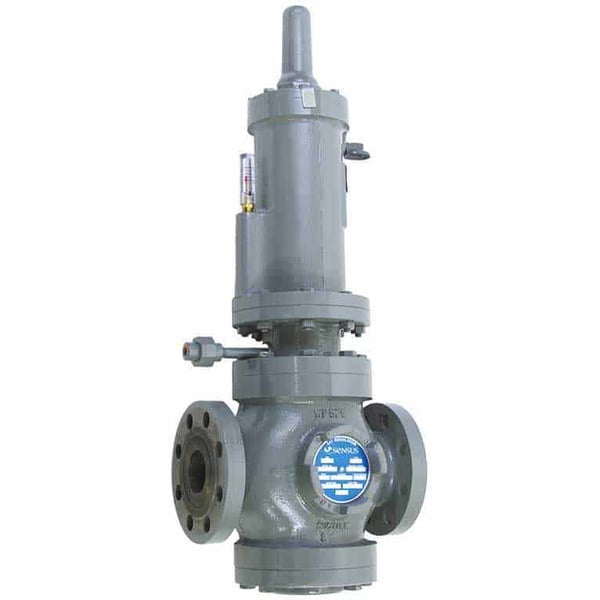

Model 441-X57
Body Sizes = 2” & 3” Flanged in ANSI 250, 300, and 600 RF
Max Inlet Pressure = 575 psi up to 1200 psi
Outlet Pressure Range = 75 psi – 250 psi
