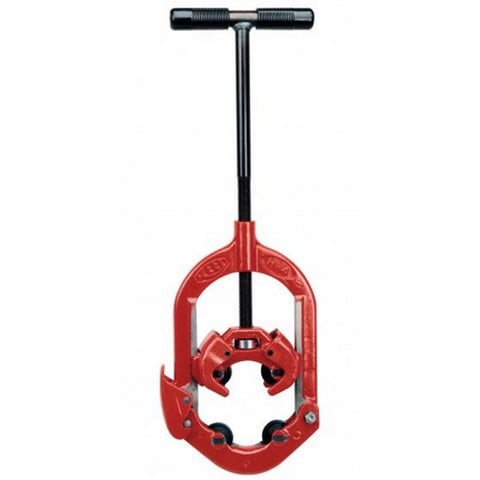

REED Pipe Cutters - Hinged
REED Pipe Cutters - Hinged
Brand: REED
Manufacturers:
Description
Hinged cutters feature four wheels to cut steel, stainless steel, cast iron, and ductile iron with a 90-degree to 110-degree handle swing. Only 4” (125mm) clearance is required around the pipe. Strong guide fingers ensure perfect wheel alignment for square cuts. A closed 360-degree frame on the hinged cutter forces all energy into cutting the pipe for maximum efficiency. There is no shower of sparks in this cold cut. REED has the only hinged cutter that tracks every time.
| Model | Pipe Capacity (in-nom.) | Pipe Capacity (actual O.D. mm) | Cutter Wheel | Application | Length (inches) |
| H21/2S | 1 - 2 1/2 | 32 - 76 | HS21/2 | Steel/Stainless Steel Sch. 40 | 17 |
| H21/2I | 1 - 2 1/2 | 32 - 76 | 2RBCI | Cast Iron, Ductile Iron | 17 |
| H21/2X | 1 - 2 1/2 | 32 - 76 | HX21/2 | Steel/Stainless Steel Sch. 40 & 80 | 17 |
| H4S | 2 - 4 | 60 - 125 | HS4 | Steel/Stainless Steel Sch. 40 | 22 |
| H4I | 2 - 4 | 60 - 125 | HI4 | Cast/Ductile Iron | 22 |
| H4X | 2 - 4 | 60 - 125 | HX4 | Steel/Stainless Steel Sch. 40 & 80 | 22 |
| H6S | 4 - 6 | 114 - 182 | HS6 | Copper | 28 |
| H6I | 4 - 6 | 114 - 182 | HI6 | Cast Iron, Ductile Iron | 28 |
| H6X | 4 - 6 | 114 - 182 | HX6 | Sch. 80 Stainless/Sch.120 Steel 4" | 28 |
| H8S | 6 - 8 | 168 - 240 | HS8-12 | Copper | 32 |
| H8I | 6 - 8 | 168 - 240 | HI6 | Cast/Ductile Iron | 32 |
| H8X | 6 - 8 | 168 - 240 | HX8 | Steel/Stainless Steel Sch. 40 & 80 | 32 |
| H8XX | 6 - 8 | 168 - 240 | HXX8 | Sch. 80 Stainless/Sch. 120 Steel 6" | 32 |
| H12S | 8 - 12 | 219 - 356 | HS8-12 | Sch. 40 Stainless/Sch. 60 Steel 8" | 34 |
| H12I | 8 - 12 | 219 - 356 | HI6 | Cast/Ductile Iron | 34 |
| H12X | 8 - 12 | 219 - 356 | HX8 | Sch. 80 Stainless/Sch. 80 Steel 8" | 34 |
| H12XX | 8 - 12 | 219 - 356 | HXX8 | Sch. 80 Stainless/Sch. 100 Steel 8" | 34 |
