Scar-Guard Outer Wrap

Selected Scar Guard
Scar Guard

Description

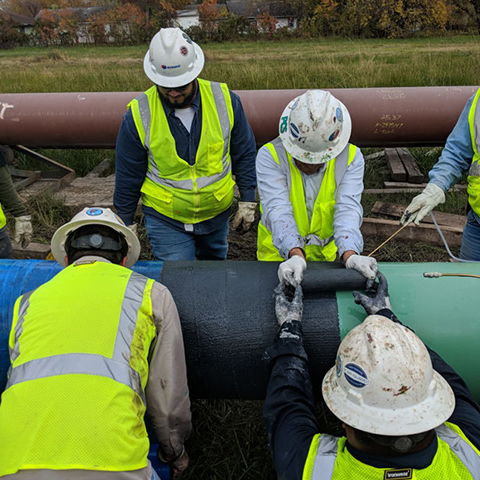

The patented Scar-Guard® line of products is designed to protect field joint and mainline coatings from the mechanical stresses and scarring associated with horizontal directional drilling (HDD), boring, and micro-tunneling of pipelines. Scar-Guard® is a composite abrasion-resistant overcoat comprised of fiberglass cloth and pre-impregnated flexible resin that is activated by water and cured within minutes. This sacrificial outer laminate system protects pre-approved anticorrosion field joint coatings and mainline coatings such as FBE, liquid epoxies, shrink sleeves, and tapes.

Material Properties Scar-Guard Scar-Guard XL
Thickness 0.034 inch (0.86 mm) 0.013 inch (0.33 mm)
Resin Type MCU MCU
Application Temperature 32° F - 150° F (0° C - 65° C) 32° F - 150° F (0° C - 65° C)
Working Time @ 75°F 12 minutes 8 minutes
Set Time @ 75° F 30 minutes 28 minutes
Impact Resistance ASTM-G14 (100 mils) 421 in lb (47.6 J) 431 in lb (48.7 J)
Abrasion Resistance ASTM D-4060 (cycles/mil) 1,667 1,467
Gouge Resistance Partech (50 kg load) Pass Pass


Product Features

6" x 20' package quantity 20.

10" x 20' package quantity 8.

10" x 30' package quantity 5.

10" x 50' package quantity 4.

Installer Kit / COMP Rolls must accompany Scar-Guard purchases.
